Movement 2512 - Hands 1
Movement 2512 - Hands 1
Movement 2512 - Hands 1
Movement 2512 - Hands 1

Movement 2512 - Hands 1

LR1E
CHF80.00
Tax excluded

Description

Basic Information

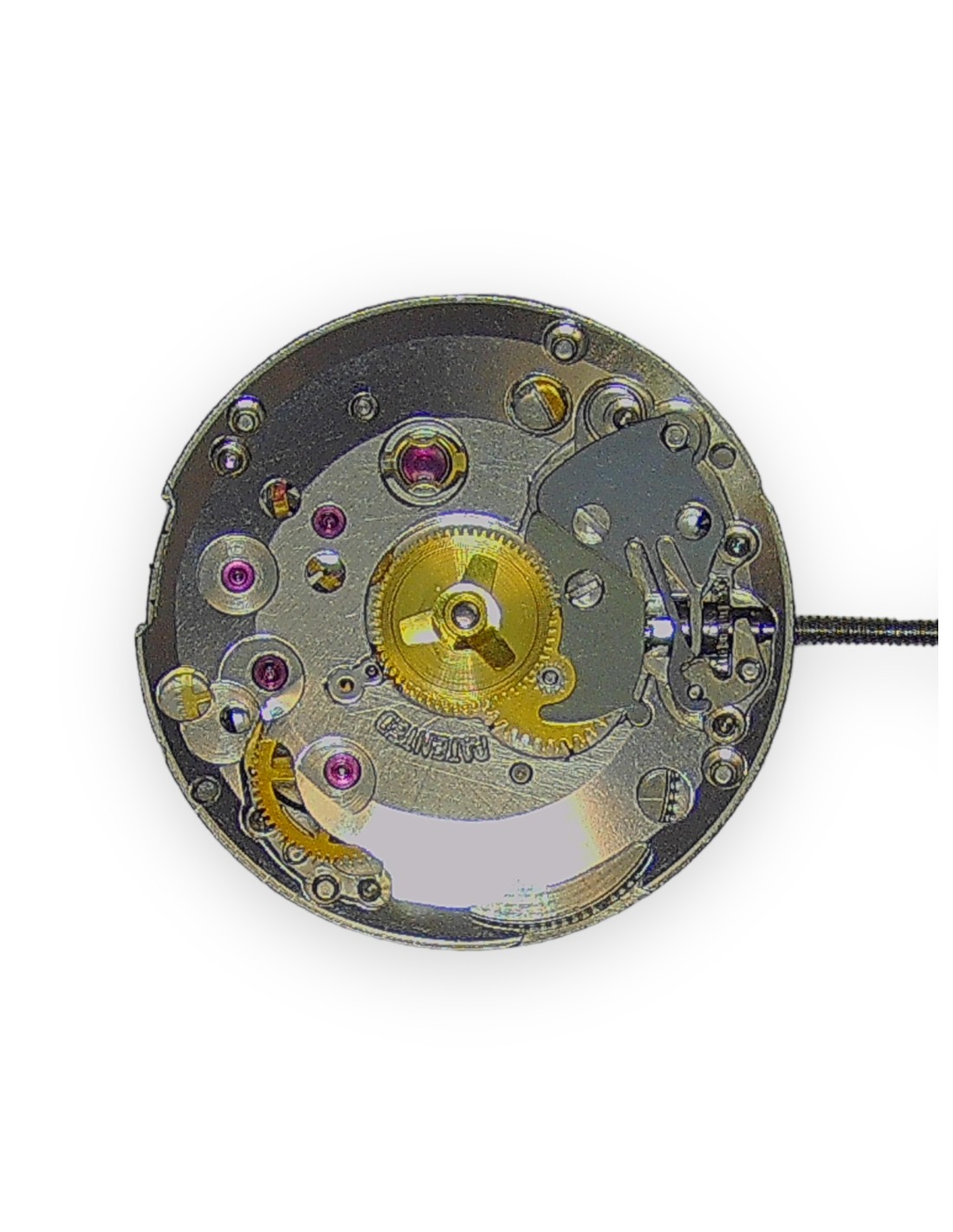

Name: ETA 2512
Manufacturer: ETA
Launch Year: 1959

Caliber Family:
Description:
2510 : 18000 A/h, setting-lever screw
2510 : 21600 A/h, setting-lever screw
2512-1: 21600 A/h, setting-lever pin

Related calibers:
ETA 2510, ETA 2512, ETA 2512-1

Technical Details:

Lignes Dimensions: 7.75 ‴
Dimensions: 17.5 mm
Height: 2.85 mm
Further Measures: Mounting Diameter (Dm): 17.2mm
Stem height (T): 1.5mm
Power Reserve: 44 hours
Frequency: 21,600 vph
Jewels: 17
Lift Angle: 52 degrees

Complications and Specifications
Shape: Round
Shock Protection: Incabloc
Regulator Type: Pinned Regulator (or Index Regulator)
Movement Type: Manual
Escapement Type: Swiss Lever
Control Type: Balance Wheel
Winding Type: Stem Winding
Setting Type: Stem Set

Source: Ranfft.org

Product Details

Condition
Neuf
Calibre
ETA 2512
